Upmatic Repackers TYPE 1352-UPA

Our one-count wonder into the Raschelsack.

With the automatic bag feeder, different bag formats and types can be counted into the Raschel bag

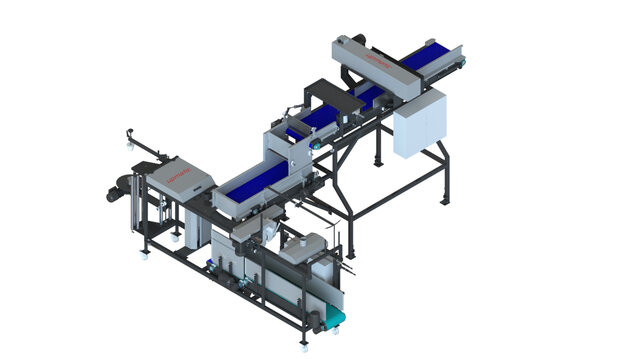

Front view
Rear view
Fields of application




Machine description

Including bag feed control
Pneumatic lifting
Optionally with labelling and printing technology
Connection to plating machine

  • Machine model

    • Available in lacquered, galvanised and stainless steel.
    • 1352 UPA

  • Technical data

    • Packing capacity: up to 95 ppm (clippware)
    • Min. bag size: 560 + 85 (bar) x 800 mm
    • Max. Bag size: 560 + 100 (bar) x 800 mm (corresponds to approx. 25 kg potatoes)
    • Rated voltage: 230 / 400 V at 50 / 60 Hz
    • Power consumption: 3.0 kW
    • Air pressure: 6 bar unlubricated
    • Air consumption per cycle: approx. 6.2 l
    • Water requirement: -



  • Accessories

    • Thermal transfer printer
    • Label dispenser
    • Filling monitoring
