Upmatic Robot Feeder TYPE 4080

The flexible robot for repackaging in boxes and cartons!

The six-axis robot packs many types of packaging into different containers with the gripper specially developed by Upmann.

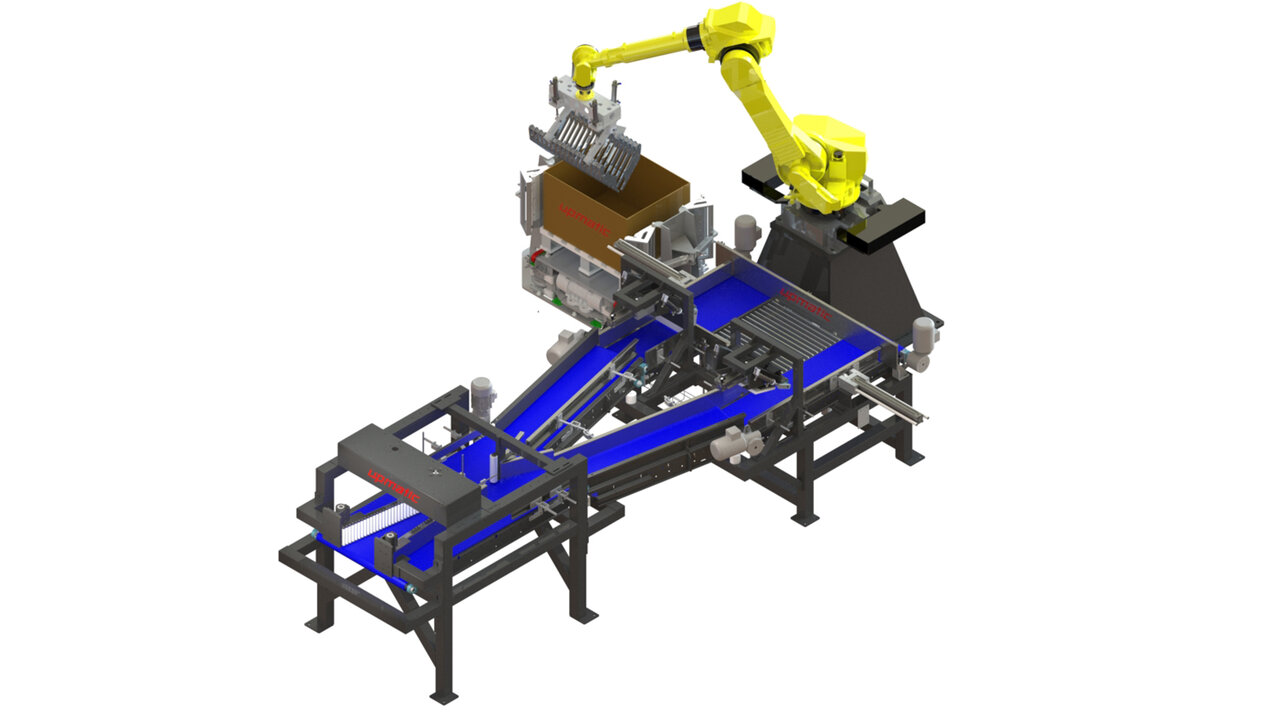

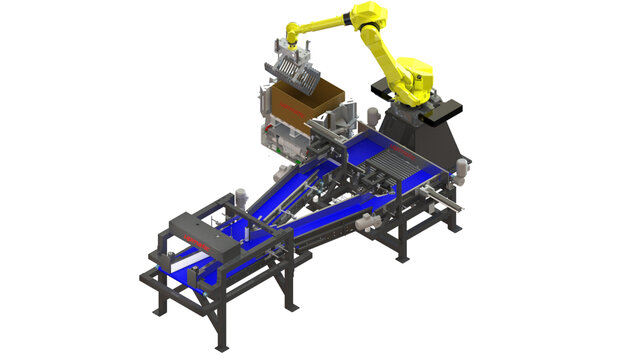

Front right view

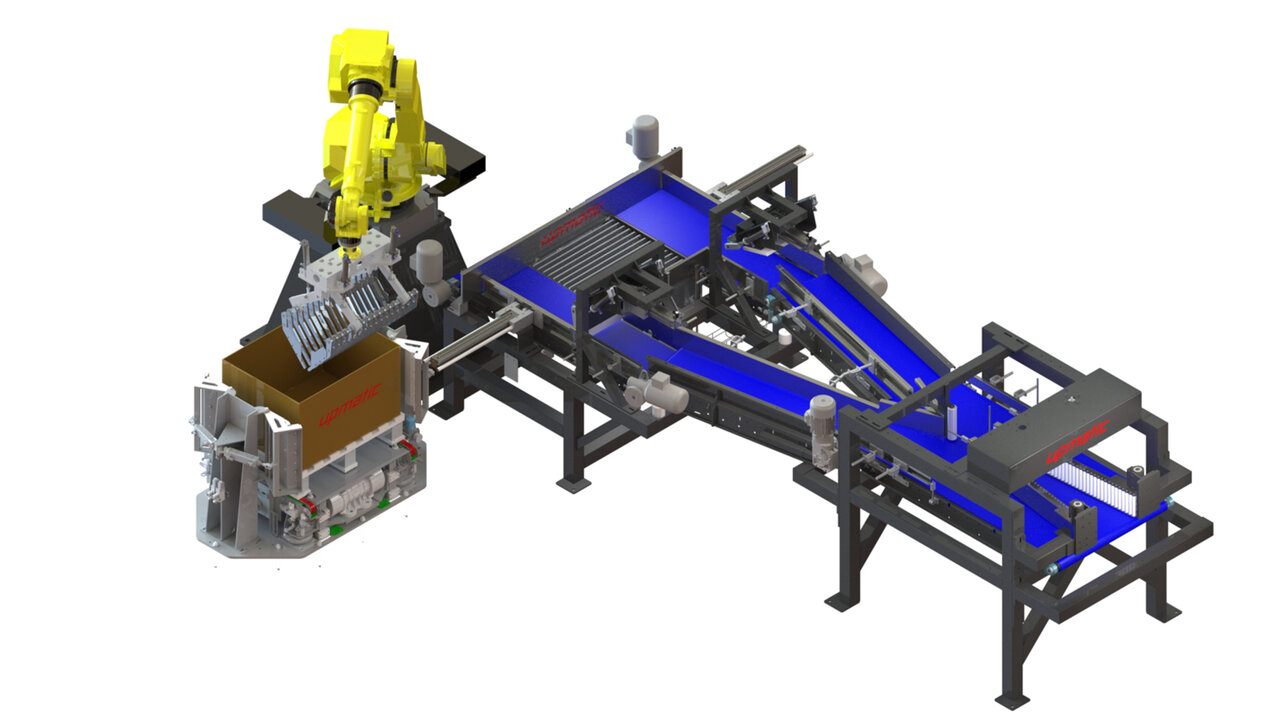

Front left view
Fields of application
Products to be processed



Machine description

Individually adaptable insertion lines possible Various containers such as Europool, Düsseldorfer, Dynamic-shipper, IFCO, carton and many more possible Integrated jogging station(s) Freely adjustable packing patterns

  • Machine model

    • Available in lacquered, galvanised and stainless steel.
    • 4080FA
    • (4080DK)

  • Technical data

    • Packing capacity: up to 90 ppm
    • Min. carton size: 800 x 600 x 450 mm
    • Max. Carton size: 800 x 600 x 1000 mm
    • Euro Pool or IFCO boxes possible
    • Rated voltage: 230 / 400 V at 50 / 60 Hz
    • Power consumption: 7.0 kW
    • Air pressure: 6 bar unlubricated
    • Air consumption per cycle: approx. 50.0 l

  • Accessories

    • Customisable packing patterns
    • Labelling devices
    • Vibrator with optoelectronic monitoring
