Upmatic scale TYPE 2212-EASY CLEAN F

For a wide range of product shapes and quantities

The upmatic 2212 weighs even the most difficult products, such as cut, frozen or fresh, extremely precisely. Thanks to its modular design, the scale can be cleaned quickly and thoroughly.

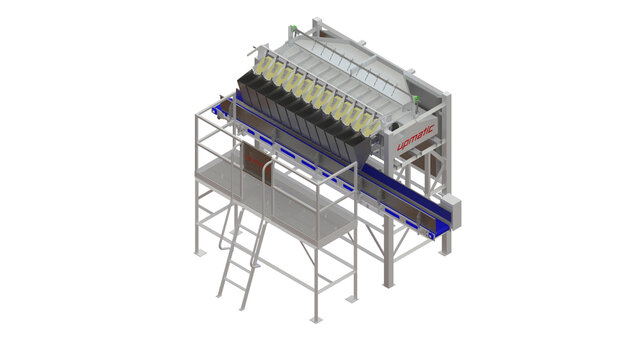

Front left view

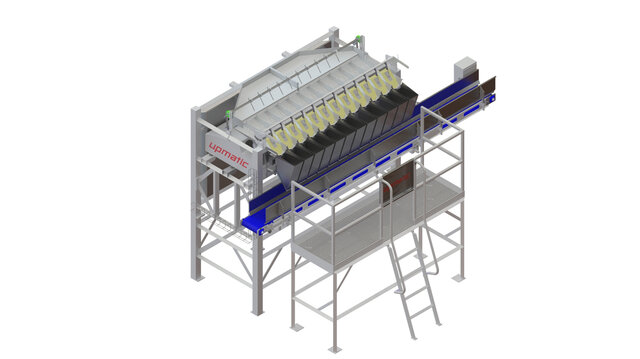

Front right view
Fields of application
Products to be processed



Machine description

The upmatic 2212 works with a multi-stage conveyor system. Removable components facilitate cleaning. Vibration amplitudes and frequencies
can be adjusted on the product accordingly.

  • Machine model

    • Stainless steel version available.
    • 2208
    • 2210
    • 2212

  • Technical data

    • Weighing capacity: up to 35 ppm
    • Weighing range: 0.1 - 10 kg
    • Calibratable according to 2014/32/EU
    • Rated voltage: 230 / 400 V at 50 / 60 Hz
    • Power consumption: approx. 4.1 kW
    • Air pressure: 6 bar unlubricated
    • Air consumption per cycle: approx. 6.5 l
    • Water requirement: -

  • Accessories

    • Feeding belts
    • Transverse bands
    • Memory
    • Hand spout
    • Platform / Stage

    • Remote access
